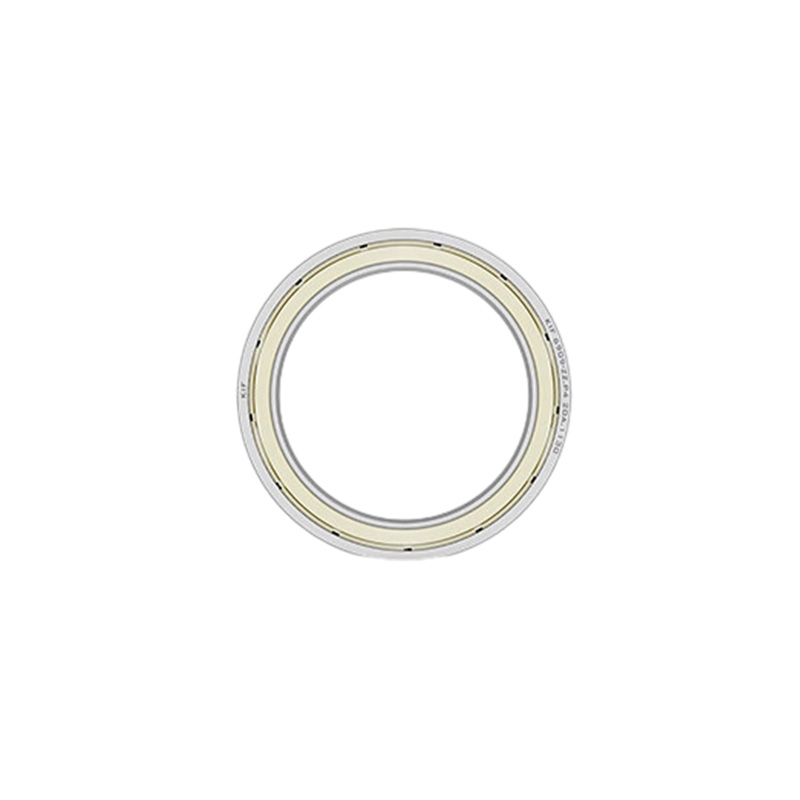

型号：16002
轴承型号Bearing NO. | 外形尺寸(mm)Shape Dimension(mm) | 钢球Steel Ball | 基本额定负荷(KN)basic Load Rating(KN) | 极限转速 (转/分) Max Speed(rpm) | 重量Weight(kg) | ||||||||||
Bore d | Outer Diameter D | Width B | Radius r min | Size mm | Quantity NO. | Dynamic Cr | Static Cor | 脂润滑 Grease | 油润滑 Oil | ||||||
mm | inch | mm | inch | mm | inch | mm | inch | ||||||||
16002 | 15 | 0.5906 | 32 | 1.2598 | 8 | 0.315 | 0.3 | 0.0118 | 4.763 | 9 | 5.6 | 2.8 | 22000 | 26000 | 0.025 |
16003 | 17 | 0.6693 | 35 | 1.378 | 8 | 0.315 | 0.3 | 0.0118 | 4.763 | 10 | 6.8 | 3.35 | 20000 | 24000 | 0.032 |
