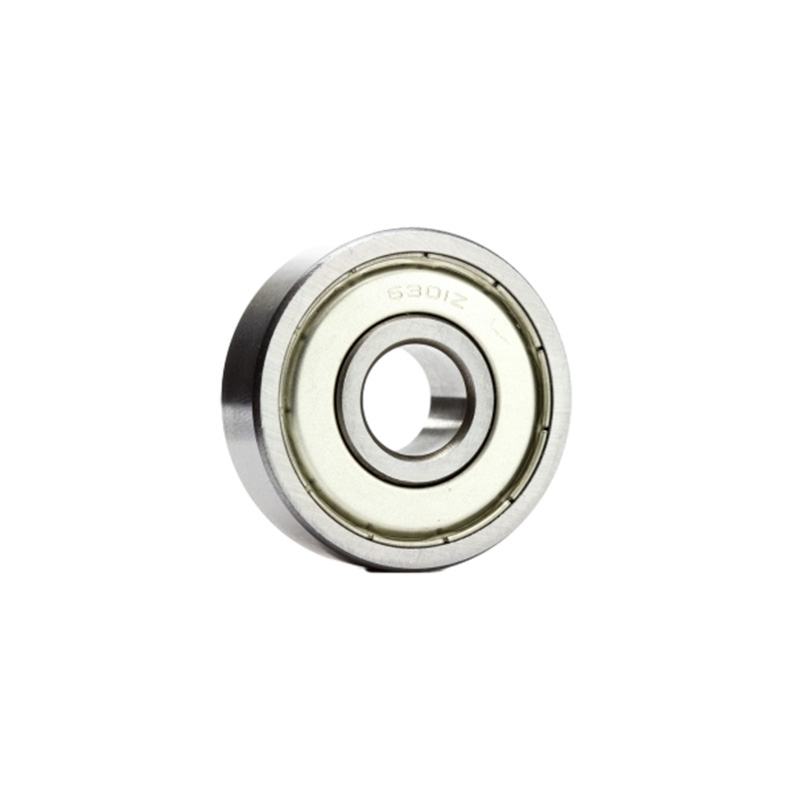

型号：6301
轴承型号Bearing NO. | 外形尺寸(mm)Shape Dimension(mm) | 钢球Steel Ball | 基本额定负荷(KN)basic Load Rating(KN) | 极限转速 (转/分) Max Speed(rpm) | 重量Weight(kg) | ||||||||||
Bore d | Outer Diameter D | Width B | Radius r min | Size mm | Quantity NO. | Dynamic Cr | Static Cor | 脂润滑 Grease | 油润滑 Oil | ||||||
mm | inch | mm | inch | mm | inch | mm | inch | ||||||||
6300 | 10 | 0.3937 | 35 | 1.378 | 11 | 0.4331 | 0.6 | 0.0236 | 6.35 | 7 | 5.88 | 3.47 | 20000 | 26000 | 0.054 |
6301 | 12 | 0.4724 | 37 | 1.4567 | 12 | 0.4724 | 1 | 0.0394 | 7.938 | 6 | 7.48 | 4.65 | 17000 | 22000 | 0.058 |
6302 | 15 | 0.5906 | 42 | 1.6535 | 13 | 0.5118 | 1 | 0.0394 | 7.938 | 7 | 8.8 | 5.43 | 16000 | 20000 | 0.082 |
6303 | 17 | 0.6693 | 47 | 1.8504 | 14 | 0.5512 | 1 | 0.0394 | 8.731 | 7 | 10.45 | 6.56 | 15000 | 19000 | 0.11 |
6304 | 20 | 0.7874 | 52 | 2.0472 | 15 | 0.5906 | 1.1 | 0.0433 | 9.525 | 7 | 12.26 | 7.81 | 13000 | 17000 | 0.14 |
