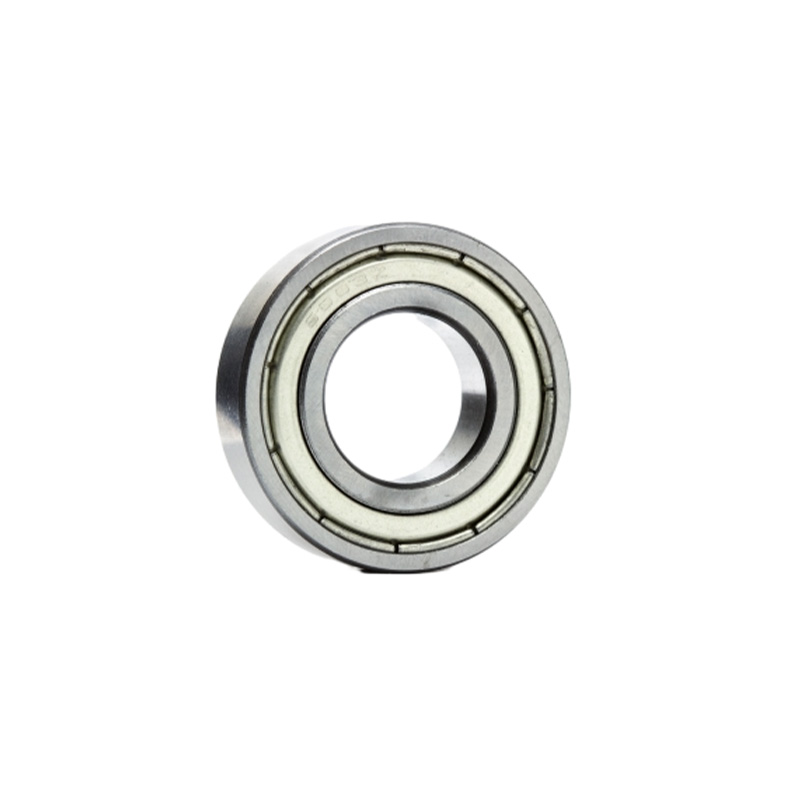

型号：6003
轴承型号Bearing NO. | 外形尺寸(mm)Shape Dimension(mm) | 钢球Steel Ball | 基本额定负荷(KN)basic Load Rating(KN) | 极限转速 (转/分) Max Speed(rpm) | 重量Weight(kg) | ||||||||||
Bore d | Outer Diameter D | Width B | Radius r min | Size mm | Quantity NO. | Dynamic Cr | Static Cor | 脂润滑 Grease | 油润滑 Oil | ||||||
mm | inch | mm | inch | mm | inch | mm | inch | ||||||||
6000 | 10 | 0.3937 | 26 | 1.0236 | 8 | 0.315 | 0.3 | 0.0118 | 4.763 | 7 | 4.58 | 1.98 | 20000 | 28000 | 0.018 |
6001 | 12 | 0.4724 | 28 | 1.1024 | 8 | 0.315 | 0.3 | 0.0118 | 4.763 | 8 | 5.1 | 2.38 | 19000 | 26000 | 0.02 |
6002 | 15 | 0.5906 | 32 | 1.2598 | 9 | 0.3543 | 0.3 | 0.0118 | 4.763 | 9 | 5.58 | 2.85 | 18000 | 24000 | 0.026 |
6003 | 17 | 0.6693 | 35 | 1.3780 | 10 | 0.3937 | 0.3 | 0.0118 | 4.763 | 10 | 6 | 3.25 | 17000 | 22000 | 0.036 |
6004 | 20 | 0.7874 | 42 | 1.6535 | 12 | 0.4724 | 0.6 | 0.0236 | 6.35 | 9 | 9.38 | 5.02 | 15000 | 19000 | 0.069 |
6005 | 25 | 0.9843 | 47 | 1.8504 | 12 | 0.4724 | 0.6 | 0.0236 | 6.35 | 10 | 10.1 | 5.85 | 13000 | 17000 | 0.075 |
6006 | 30 | 1.1811 | 55 | 2.1654 | 13 | 0.5118 | 1 | 0.0394 | 7.144 | 11 | 10.18 | 6.91 | 10000 | 14000 | 0.116 |
6007 | 35 | 1.3780 | 62 | 2.4409 | 14 | 0.5512 | 1 | 0.0394 | 7.938 | 11 | 12.47 | 8.66 | 9000 | 12000 | 0.155 |
6008 | 40 | 1.5748 | 68 | 2.6772 | 15 | 0.5906 | 1 | 0.0394 | 7.938 | 12 | 13.1 | 9.45 | 8500 | 11000 | 0.185 |
